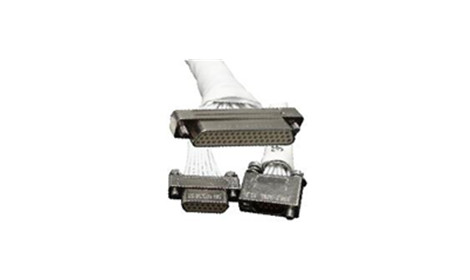

J56J Microminiature Rectangular Connector


The J56J series is a small-sized micro-rectangular electrical connector optimized for size based on the J30J series. Due to the different size of the plug interface, the product cannot be interchanged and inserted with the J30J series. The product shell material is aluminum alloy, the contact spacing is 1.27mm, it is suitable for low frequency installation wire with sectional area of 0.1-0.15mm2. The product meet the requirements of GJB2446A "General Specification for Ultra-Small Rectangular Electrical Connector for Housing Positioning" (equivalent MIL-DTL-83513), they have the characteristics with smaller size, light weight, reliable connection, excellent electromagnetic shielding performance, low insertion force, anti-vibration and resistance, which are widely used in electronic equipment and instruments that require small spaces.


Specification:

Technical Characteristics

Executive Standard

Enterprise standards and general specifications

Q/EL009A-2012         GJB2446A-2011

Insulation Resistance

≥ 1000 MΩ

Dielectrics Voltage-resistance

800V

Environmental temperature

-55℃ ~ + 125℃



Applications:

* Avionics, radars

* Missiles and guidance systems

* On-board equipment

* Telecommunication systems

* Navigation systems

* Research centres

* Medical applications

* Cable to Cable

* Board to Cable

* Surface Mount (SMT) Board to Cable
