J30 Microminiature Rectangular Connector

2018.11.26



J30 Microminiature Rectangular Connector

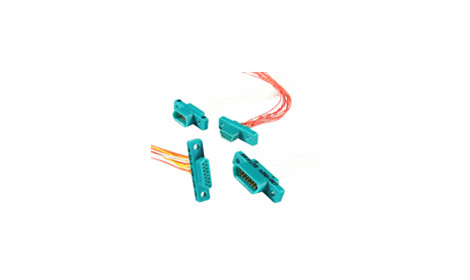

J30 series products are equivalent to the US MD series products, with a plastic shell, the contact pitch is 1.27mm, suitable for wire core cross-sectional area 0.1mm² ~ 0.15mm², which are mainly used in aviation, aerospace electronic equipment and instruments. The product meets requirements of GJB2446A "General Specification for Ultra-samll Rectangular Electrical Connectors for Housing Positioning" (Equivalent MIL-DTL-83513).

Specification:


Technical Characteristics

Rated Current

3A

Insulation Resistance

≥ 5000 MΩ

Dielectrics Voltage-resistance

800V

Mechanical life

500 cycles

Environmental Conditions

Environmental Temperature

-55℃ ~ + 125℃

Vibration

10Hz~ 2000Hz  196m/s²

Random Vibration

Power Spectral Density (PSD) 0.4G2/Hz

Total Acceleration RMS Value 23.1G

Shock

Acceleration 735m/s²  11ms



Applications:

* Avionics, radars

* Missiles and guidance systems

* On-board equipment

* Telecommunication systems

* Navigation systems

* Research centres

* Medical applications

* Cable to Cable

* Board to Cable

* Surface Mount (SMT) Board to Cable
