J55AM Hermetic Miniaturized Rectangular Connector

2018.11.26


J55A _副本.jpg

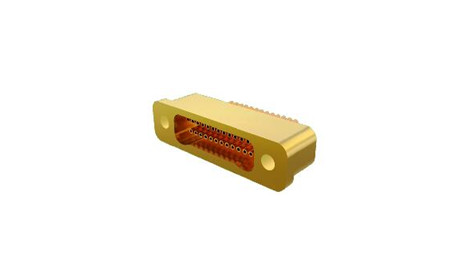

J55AM Hermetic Miniaturized Rectangular Connector

J55AM series hermetic miniaturized rectangular connector contains 9, 13, 15, 21, 25, 31, 37pin, etc. The inner conduct of the product is jack, and the insulating medium is made of glass, which can realize the hermetic sealing function; the product is generally fixed by soldering with the customer's mounting plate. It is suitable for the interconnection of various electrical and circuit systems with high density, miniaturization, light-weight, high reliability and hermetic seal requirements to meet the needs of light-weight and miniaturization of the system. Executive standard: Q/EL061-2016 "The ultra-rectangular electrical connector of housing positioning" the product is connected with J55A epoxy potting series sockets for inserting and interconnecting.


Specification:



Technical Characteristics

Rated Current

1A

Contact Resistance

≤32MΩ

Insulation Resistance

≥ 1000 MΩ  100VDC

Dielectrics Voltage-resistance

100V

Mechanical life

200 cycles

Environmental Conditions

Environmental Temperature

-55℃ ~ + 125℃

Vibration

10Hz~ 2000Hz  196m/s²

Random Vibration

Power Spectral Density (PSD) 0.4G2/Hz

Total Acceleration RMS Value 23.1G

Shock

Acceleration 980m/s²  6ms



Applications:

* Avionics, radars

* Missiles and guidance systems

* On-board equipment

* Telecommunication systems

* Navigation systems

* Research centres

* Medical applications

* Cable to Cable

* Board to Cable

* Surface Mount (SMT) Board to Cable
