J55A Ultra-micro Rectangular Connector

2018.11.26

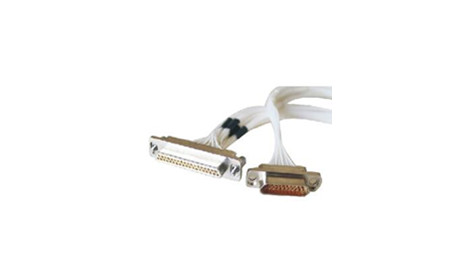

J55A Ultra-micro Rectangular Connector


J55A ultra-micro rectangular connector contains 10 kinds of specifications: 9, 13, 15, 21, 25, 31, 37, 51, 65, 69 pin, adopts twisted nano-pins(twist needles) and a pitch of 0.635mm, small size, the plug and socket are generally connected by screw and nut, and plug and socket is soft and the locking is reliable. It is suitable for the interconnection of various electrical and circuit systems with high density, miniaturization, light-weight and high reliability requirements to meet the needs of light-weight and miniaturization of the system. One end with twisted needle is the plug, other end is the socket, the end with locking screw is free end, and the other end of connecting nut is fixed end. The free end and fixed end of the conventional pairing are screwed and locked by the locking screw and the connecting nut. Executive standard: Q/EL061-2016 "Detailed specification of the ultra-rectangular electrical connector for housing positioning". The cross-sectional area of the product crimping wire is 0.035mm2.




Specification:

Technical Characteristics

Rated Current

1A

Contact Resistance

≤21MΩ

Insulation Resistance

≥ 5000 MΩ  100VDC

Dielectrics Voltage-resistance

250V

Mechanical life

200 cycles

Environmental Conditions

Environmental Temperature

-55℃ ~ + 125℃

Vibration

10Hz~ 2000Hz  196m/s²

Random Vibration

Power Spectral Density (PSD) 0.4G²/Hz

Total Acceleration RMS Value 23.1G

Shock

Acceleration 980m/s²  11ms



Applications:

* Avionics, radars

* Missiles and guidance systems

* On-board equipment

* Telecommunication systems

* Navigation systems

* Research centres

* Medical applications

* Cable to Cable

* Board to Cable

* Surface Mount (SMT) Board to Cable
