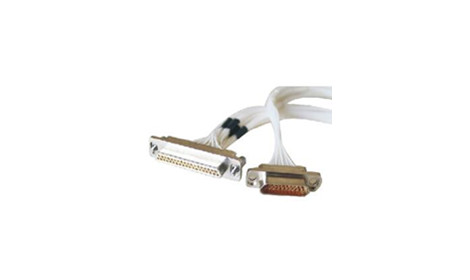

J50J Miniaturized Metal Rectangular Connector


J50J products are metal shells with a contact pitch of 1.91mm, a row spacing of 1.65mm, suitable for the wire of cross-sectional area of 0.15-0.3mm2, and the core number is 9, 15, 21, 25, 31, 37, 51 cores, terminated Forms include crimping, soldering, straight printed boards and curved printed boards.The product has the advantages of high density, light weight and miniaturization, which can realize the reliable interconnection of the electrical circuit system between internal cable to the cable, the cable and the printed board, and the printed board and the printed board.



Specification:

Technical Characteristics

Rated Current

5A

Contact Resistance

≤10MΩ

Insulation Resistance

≥ 1000 MΩ

Dielectrics Voltage-resistance

1000V

Mechanical life

500 cycles

Environmental Conditions

Environmental Temperature

-55℃ ~ + 125℃

Relative Humidity

+40℃ up to 95%

Low Pressure

4.4KPa 65V

Vibration

10Hz~ 2000Hz   196m/s²

Shock

Acceleration 980m/s²   6ms


Applications:

* Avionics, radars

* Missiles and guidance systems

* On-board equipment

* Telecommunication systems

* Navigation systems

* Research centres

* Medical applications

* Cable to Cable

* Board to Cable

* Surface Mount (SMT) Board to Cable
