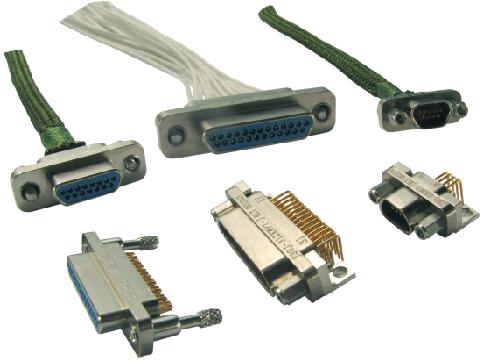

J30J Series Micro Rectangular Connector


J30J connector is equivalent to MDM series products. The shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm² squared.

This product performance comply with GJB2446A( general specification for micro-miniature polarized shell rectangular electrical connectors),it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) . With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.

Specification:

Technical Characteristics

Rated Current

3A

Insulation Resistance

≥ 5000 MΩ

Dielectrics Voltage-resistance

800V

Mechanical life

500 cycles

Environmental Conditions

Environmental Temperature

-55℃ ~ + 125℃

Vibration

10Hz~ 2000Hz  196m/s²

Shock

Acceleration 980m/s²  6ms

Random Vibration

Power Spectral Density (PSD) 0.4G2/Hz

Total Acceleration RMS Value 23.1G


Applications:

* Avionics, radars
* Missiles and guidance systems
* Telecommunication systems
* Navigation systems
* Research centres
