ASMP/CSMP Connector

2018.06.01

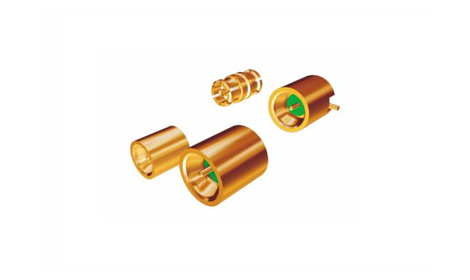

ASMP is a new blind mate RF connector which is the same structure and using method with SMP seeries. The outline dimension is about 22% larger than SMP, the transmitted power is almost 30%~50% higher. It meets well board to board connection, modular intensive mounting and high power requirements situations. Male SMP connector have two kinds of interface full detent structure and unthreaded hole, female connector only have one interface, which can be mated with every kind of male connector.

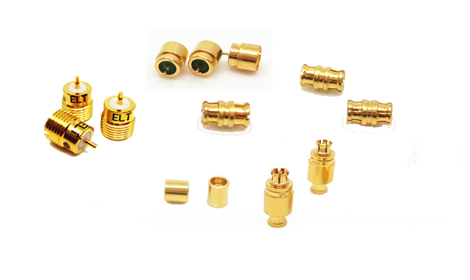

CSMP is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with SSMP), light weight, wide working broadband, etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.

 Click here to view more
